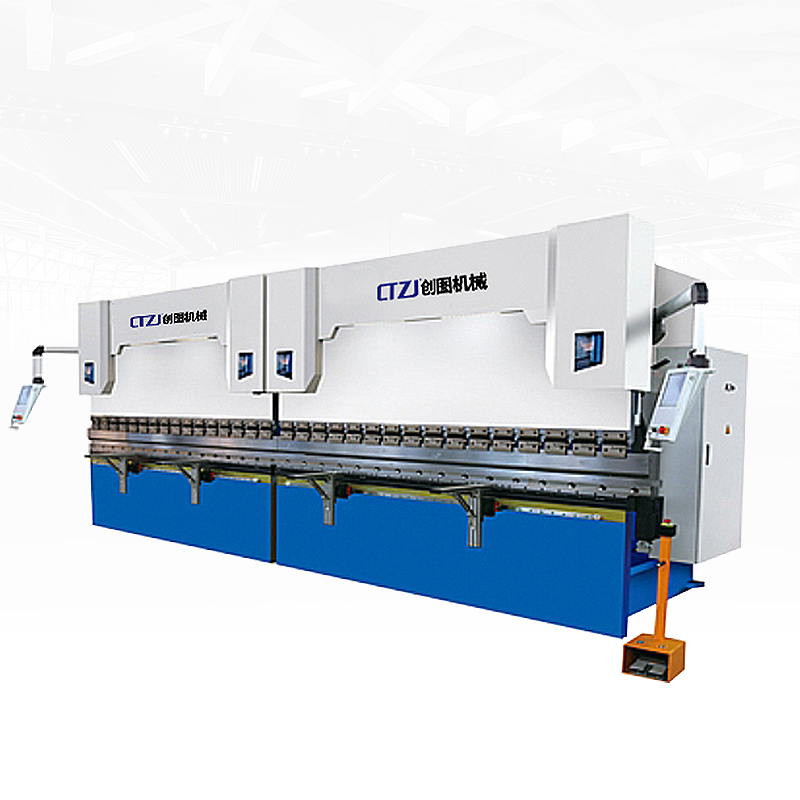

Products Description
1. Electro-hydraulic servo system, with grating ruler accurate positioning, to achieve full closed-loop control.
2. Unique technology: large bending machine bidirectional deflection compensation mechanism.
3. Adjustable insert die to meet the processing of various workpieces.
4. A variety of auxiliary mechanisms are available for users to choose, making the processing more convenient and efficient.
Technical parameter
Specification | Nominal pressure (KN) | Length of working table (mm) | Distance between uprights (mm) | Throat depthn (mm) | Ram stroke (mm) | motor power (Kw) | opening height (mm) |
| 2-320/5000 | 2X3200 | 2X5000 | 4300 | 400 | 250 | 2X22 | 560 |
| 2-320/6000 | 2X3200 | 2X6000 | 5300 | 400 | 200 | 2X22 | 500 |
| 2-400/4000 | 2X4000 | 2X4000 | 3100 | 400 | 320 | 2X37 | 625 |
| 2-400/5000 | 2X4000 | 2X5000 | 4210 | 400 | 320 | 2X37 | 625 |
| 2-500/4000 | 2X5000 | 2X4000 | 3100 | 400 | 320 | 2X37 | 630 |
| 2-500/5000 | 2X5000 | 2X5000 | 4100 | 400 | 320 | 2X37 | 630 |
| 2-500/6000 | 2X5000 | 2X5000 | 5100 | 400 | 320 | 2X37 | 630 |
| 2-630/5000 | 2X6300 | 2X6300 | 4100 | 400 | 320 | 2X45 | 710 |
| 2-630/6000 | 2X6300 | 2X6300 | 5100 | 400 | 320 | 2X45 | 710 |
| 2-800/8000 | 2X8000 | 2X8000 | 6700 | 400 | 100 | 2X55 | 750 |
