Products Description

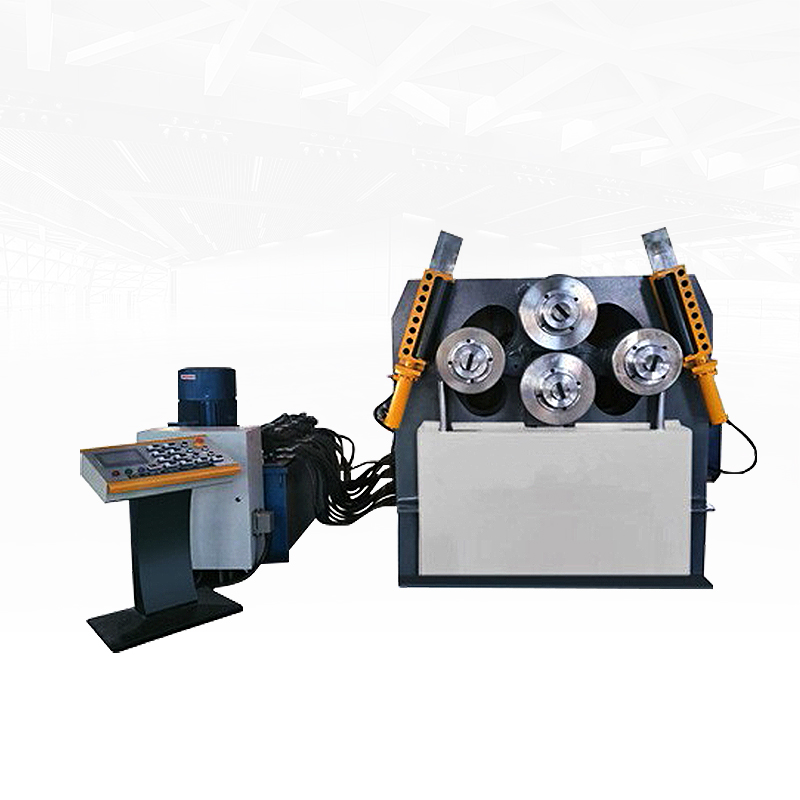

W24H series four-axis CNC profile bending machine, with international excellent technology, by the PLC programmable digital control, full hydraulic drive. This series of profile bending machine is specially designed for small straight edges and high-precision bending, profile bending can be loaded once to complete the profile pre-bending, roll round and campus processes. Its structure is advanced bending straight edge short, bending profiles with high precision.
Product Characteristics
1.Digitally controlled, rolled to shape in a single pass
2.Touch screen support for visual input, editing of work steps, storage of 10 groups of roll-up programs
3.Support man-machine dialogue, fault self-diagnosis, intelligent judgment of operating errors
4.Four axes driven by hydraulic motors and reducers
5.The whole frame is annealed to eliminate stress, never deformed
6.Shafts are specially hardened and ground
7.Molds are hardened to bend flat steel, square steel, angle steel and other profiles
8.Two-way hydraulic side guide shaft
9.Vertical or horizontal position can be selected according to the working environment.
Technical parameter
Technical parameters | Max bending resistance of section modulus | |||||||
| 6 | 16 | 30 | 45 | 75 | 100 | 140 | ||
| Specification | 6 | 16 | 30 | 45 | 75 | 100 | 140 | |
Bendingspeed | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
Materialyield limit | 250 | |||||||
Angle-steel in-turn | Max.Section | 40x5 | 70x8 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 |
| Min.bending DIA | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 2400 | |
Angle-steel out-turn | Max.Section | 50x5 | 80x8 | 90x10 | 100x10 | 120x12 | 140x16 | 150x16 |
| Min.bending DIA | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | 2200 | |
Cnannelsteel out-turn | Max.Section | 8 | 12 | 16 | 20 | 25 | 28 | 30 |
| Min.bending DIA | 600 | 800 | 800 | 1000 | 1100 | 1700 | 1200 | |
Channel steel in-turn | Max.Section | 8 | 12 | 16 | 20 | 25 | 28 | 30 |
| Min.bending DIA | 700 | 900 | 1000 | 1150 | 1600 | 1700 | 1700 | |
Flat steel horizontal turn | Max.Section | 100x18 | 150x25 | 180x25 | 200x30 | 220x40 | 250x40 | 280x50 |
| Min.bending DIA | 600 | 700 | 800 | 900 | 1000 | 1100 | 1300 | |
Flat steel vertical turn | Max.Section | 50x8 | 75x16 | 90x20 | 100x25 | 110x40 | 120x40 | 150x40 |
| Min.bending DIA | 500 | 760 | 800 | 1000 | 1100 | 1300 | 1500 | |
Round steel bending | Max.Section | 38 | 52 | 62 | 75 | 85 | 90 | 100 |
| Min.bending DIA | 450 | 600 | 600 | 800 | 1000 | 1100 | 1200 | |
Round tube bending | Max.Section | 42x4 | 76x4.5 | 89x5 | 89x8 | 114x5 | 159x5 | 168x6 |
| Min.bending DIA | 500 | 750 | 900 | 900 | 1200 | 2000 | 2000 | |
Square tube bending | Max.Section | 45x3 | 60x4 | 70x4 | 80x6 | 90x8 | 100x10 | 125x10 |
| Min.bending DIA | 750 | 900 | 1000 | 1200 | 1600 | 2000 | 2500 | |
| I-steel vertical turn | Max.Section | - | - | - | - | 10 | 12.6 | 14 |
| Min.bending DIA | - | - | - | - | 2000 | 2500 | 3000 | |
Technical parameters | Max bending resistance of section modulus | |||||||
| 180 | 260 | 320 | 400 | 500 | 780 | 1000 | ||
| Specification | 180 | 260 | 320 | 400 | 500 | 780 | 1000 | |
Bendingspeed | 4 | 4 | 4 | 4 | 4 | 3.5 | 3.5 | |
Materialyield limit | 250 | |||||||
Angle-steel in-turn | Max.Section | 150x16 | 160x16 | 180x14 | 200x18 | 200x20 | 200x22 | 200x25 |
| Min.bending DIA | 2600 | 2600 | 3600 | 3600 | 4000 | 6000 | 8000 | |
Angle-steel out-turn | Max.Section | 160x16 | 250x25 | 200x18 | 200x24 | 250x25 | 250x28 | 250x30 |
| Min.bending DIA | 2000 | 2500 | 3600 | 3600 | 4000 | 6000 | 8000 | |
Cnannelsteel out-turn | Max.Section | 32 | 36 | 40 | 45 | 50 | 55 | 60 |
| Min.bending DIA | 1800 | 1800 | 2000 | 2000 | 2400 | 3000 | 4000 | |
Channel steel in-turn | Max.Section | 32 | 36 | 40 | 45 | 50 | 55 | 60 |
| Min.bending DIA | 1800 | 1800 | 2000 | 2000 | 2400 | 3000 | 4000 | |
Flat steel horizontal turn | Max.Section | 300x50 | 330x50 | 360x60 | 400x75 | 500x76 | 600x80 | 700x90 |
| Min.bending DIA | 1500 | 1900 | 2000 | 2400 | 2400 | 3000 | 4000 | |
Flat steel vertical turn | Max.Section | 180x30 | 190x40 | 190x50 | 200x50 | 200x60 | 250x70 | 300x70 |
| Min.bending DIA | 2000 | 2000 | 2400 | 2200 | 2500 | 2800 | 3200 | |
Round steel bending | Max.Section | 110 | 120 | 135 | 150 | 160 | 180 | 200 |
| Min.bending DIA | 1300 | 1350 | 1800 | 2000 | 2000 | 2200 | 2800 | |
Round tube bending | Max.Section | 168x8 | 219x8 | 245x8 | 273x8 | 323x10 | 355x7 | 406x7 |
| Min.bending DIA | 2000 | 2500 | 3000 | 3500 | 4200 | 6000 | 8000 | |
Square tube bending | Max.Section | 140x10 | 150x10 | 165x10 | 180x12 | 200x12 | 250x12 | 300x10 |
| Min.bending DIA | 3000 | 3000 | 3500 | 3500 | 5000 | 8000 | 12000 | |
| I-steel vertical turn | Max.Section | 16 | 18 | 20b | 22b | 25b | 28 | 30 |
| Min.bending DIA | 3500 | 4000 | 5000 | 8000 | 10000 | 12000 | 16000 | |
