Products Description
Widely used in steel structure processing and production, high-voltage power line tower, telecommunication tower, street lamps and other civil facilities production enterprises; and can be used in large-scale steel bridges, military, aerospace and other high-demand, high-precision and other production and construction.

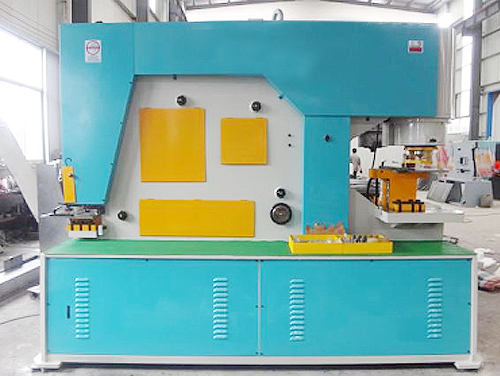

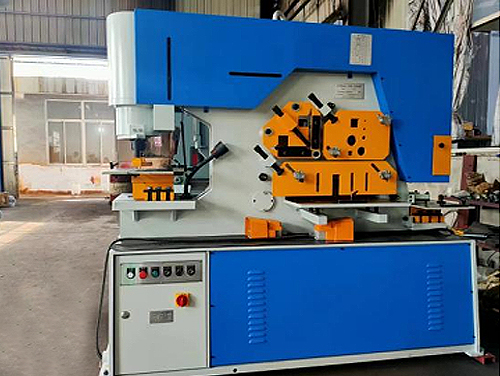

Product Pictures
Product Details

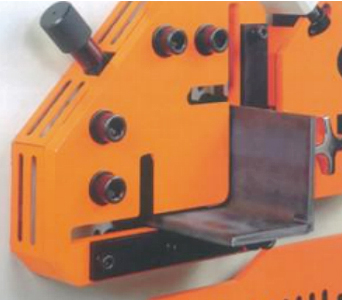

★ diamond shaped blades
The diamond shaped blades ensure high quality shearing i.e.: minimal deformation and loss of sheared material, 45 degree shearing from the top and bottom.
|
|

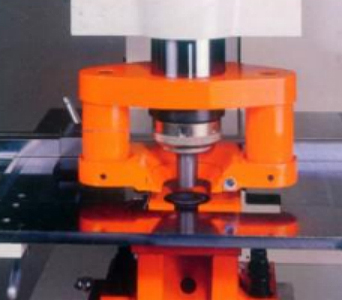

★ Punch Position The perforated template has a large viewing window and a screw-on design for easier handling. Two large measuring plates with scales and support stops are standard facilities. Quick-change coupling nuts and coupling sleeves can be quickly reset and changed. |
|
Technical parameter
Specification | Q35Y-12 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
punching pressure(T) | 35T | 60T | 90T | 115T | 145T | 200T | 250T |
max.cutting thickness of steel plates(mm) | 12 | 16 | 20 | 25 | 30 | 40 | 450 |
plate strength (N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| angle of shear | 7 | 7 | 8 | 8 | 8 | 8 | 8 |
A trip size (Txw)(mm) | 12X160 | 16X250 | 20X330 | 25X333 | 30X335 | 40X335 | 50X300 |
| 6X300 | 8X400 | 10X480 | 16X600 | 20X600 | 30X600 | 30X750 | |
trips frequency (times/min) | 10-18 | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 | 6-12 |
throat depth(mm) | 115 | 300 | 355 | 400 | 600 | 530 | 600 |
punch depth(mm) | 12 | 16 | 20 | 25 | 28 | 35 | 40 |
max.punching power(kw) | 25 | 25 | 30 | 35 | 38 | 40 | 45 |
max.motor power(kw) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
overall diamensions (LxWxH)m'm | 950X55 | 1470X81 | 1950X90 | 2355X96 | 2800X105 | 2900X110 | 3200X144 |
| 0X1800 | 0X1830 | 0X1950 | 0X2090 | 0X2450 | 0X2500 | 0X2500 |
